Market Momentum: A Growing Demand for Flexible Battery Testing

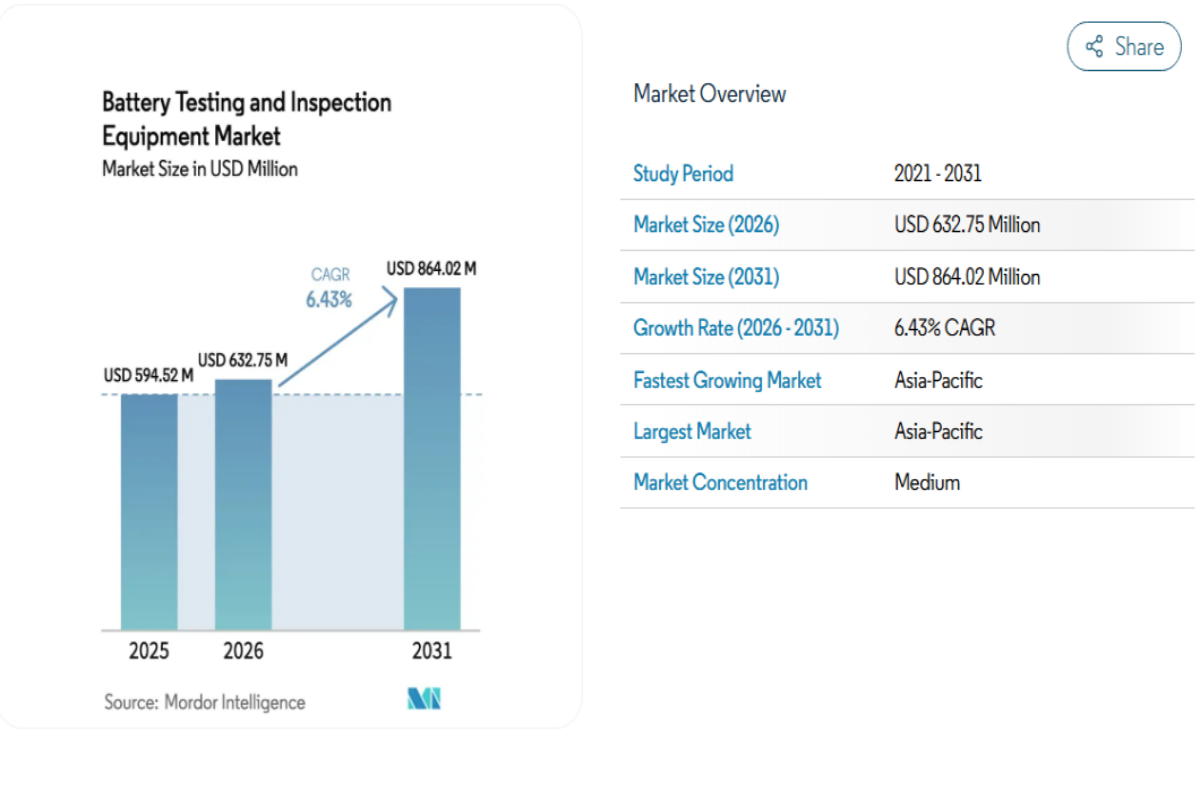

The global battery testing and inspection equipment market is entering a steady growth phase, driven by the rapid expansion of electric vehicles (EV) and energy storage systems (ESS).
According to Mordor Intelligence, the market is expected to grow from USD 594.52 million in 2025 to USD 632.75 million in 2026, and further reach USD 864.02 million by 2031, representing a CAGR of 6.43% from 2026 to 2031.
The Nebula Portable Battery Module Cycler is engineered to deliver lab-grade performance in a field-ready platform.

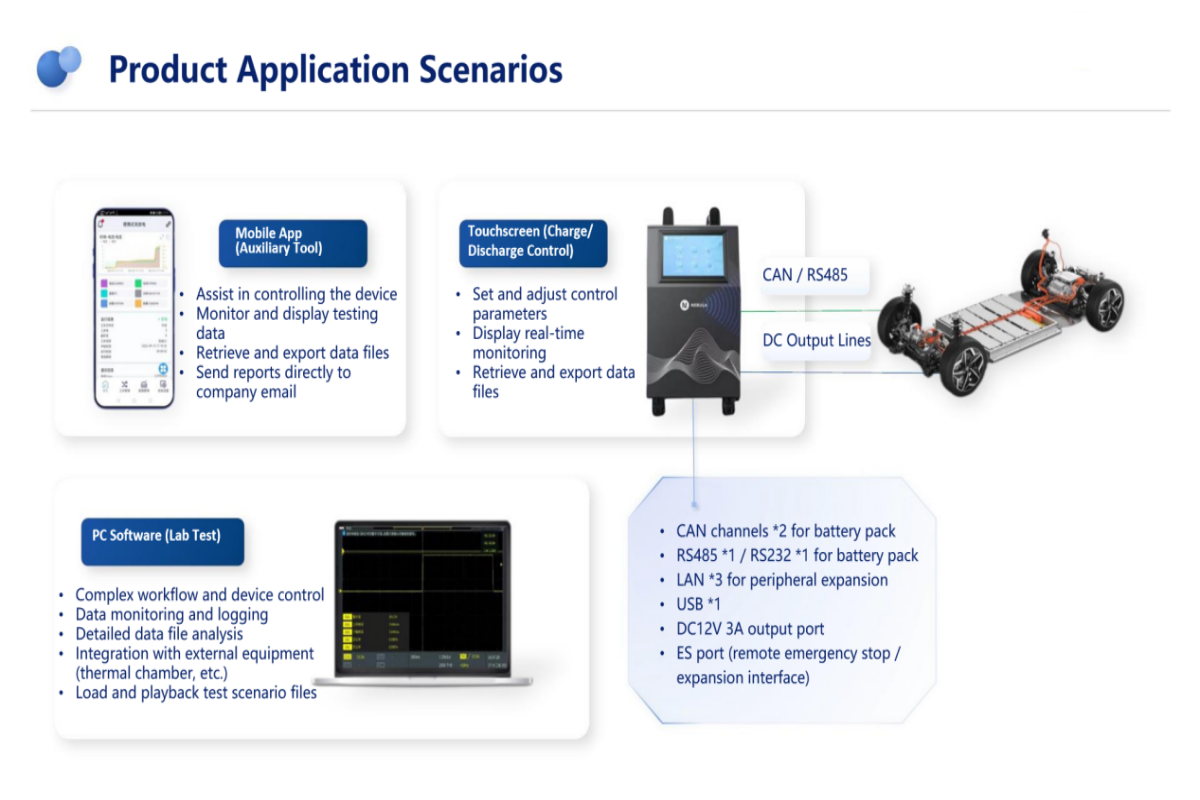

1.From Testing Equipment to Multi-Scenario Productivity Tool
Traditional battery testing equipment has primarily served laboratory environments. However, with the rapid growth of EV and ESS industries, battery lifecycle management is increasingly shifting toward after-sales and service scenarios. While the Nebula Portable Battery Module Cycler is classified as a battery cycler, its real-world applications have far surpassed pure testing, it is now widely adopted by users across multiple scenarios:
- Energy Storage Systems (ESS):Widely used for module balancing, SOC adjustment, and on-site energy replenishment across service centers, field sites, and warehouses.
- Electric Vehicle (EV) After-Service: Enables battery module charging/discharging, maintenance, diagnostics, and performance recovery in EV service networks.
- Battery Aftermarket & Service Providers :Functions as a mobile charge/discharge unit for module-level repair, refurbishment, and lifecycle management.
- Laboratory & Validation Scenarios: Delivers high-precision testing; supports thermal chamber integration via PC software; optional negative pressure enables forced discharge for consumer batteries.
This shift reflects a broader industry trend: Equipment is no longer defined by a single function, but by how many real-world problems it can solve efficiently.
2. High Power, Mobile Design: Redefining Field Efficiency
Delivering up to 20 kW per channel within a compact form factor (weight: 50 kg), the Nebula Portable Battery Module Cycler redefines field efficiency by combining high power density with a mobile design in a single system.
Compared with conventional portable systems (typically 3–5 kW), it enables:
- Significantly faster energy replenishment
- Reduced maintenance and operation time
- Higher field service efficiency
At the same time, its lightweight & high-strength structure (aerospace-grade aluminum) and minimal infrastructure requirements allow flexible deployment across laboratories, workshops, and field environments. By enabling faster replenishment and true on-site operation without bulky infrastructure, the Nebula system delivers a more efficient and flexible solution for distributed energy service teams, where power and mobility are equally critical.

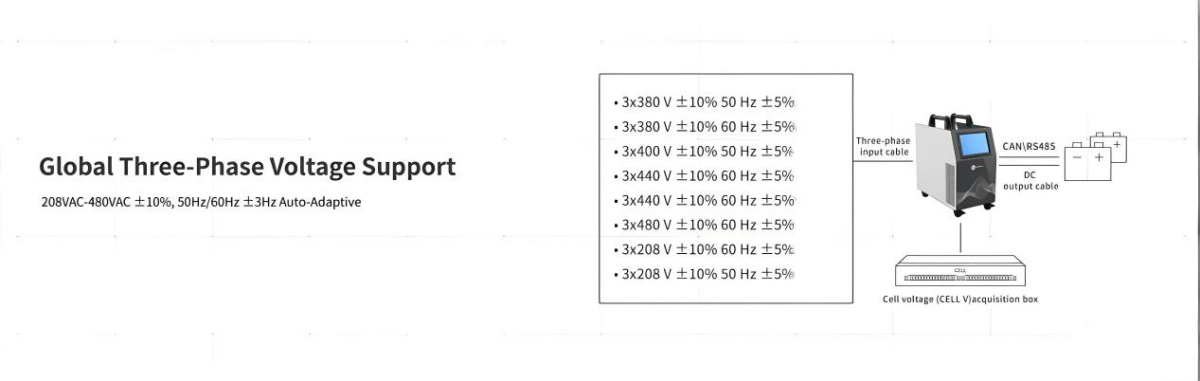

3. Global Grid Compatibility: Built for International Deployment
For companies operating across multiple regions, grid inconsistency remains a major challenge—service teams must handle different voltage standards, equipment often requires region-specific configurations, and incorrect connections can lead to system failure and operational risks.
- Supports 208V / 380V / 400V/ 440V/ 480V across global voltage standards.
- Automatically adapts to 50Hz / 60Hz frequencies without manual configuration.
- Compatible with three-phase power systems across Asia, Europe, and North America.
- Eliminates the need for multiple region-specific devices in global operations.
By enabling one device for global deployment, the system simplifies international operations and provides a more reliable solution across Europe, North America, and Southeast Asia.
4.Precision and Efficiency: Lab-Grade Performance in a Portable Platform
In both field and laboratory environments, battery testing systems must deliver high measurement accuracy without compromising operational flexibility.
The system delivers excellent performance with:
- Voltage and current accuracy up to ±0.02% F.S.
- Fast current response time ≤ 5 ms
- Driving profile simulation with 20 ms resolution
- Optional high-speed data acquisition down to 1 ms
- Multiple programmable test modes: CC, CV, CP, Pulse, DCIR, etc.
- Support for complex step programming for advanced laboratory test profiles
By combining precision measurement with flexible programming, the system enables reliable operation in battery after-service scenarios.

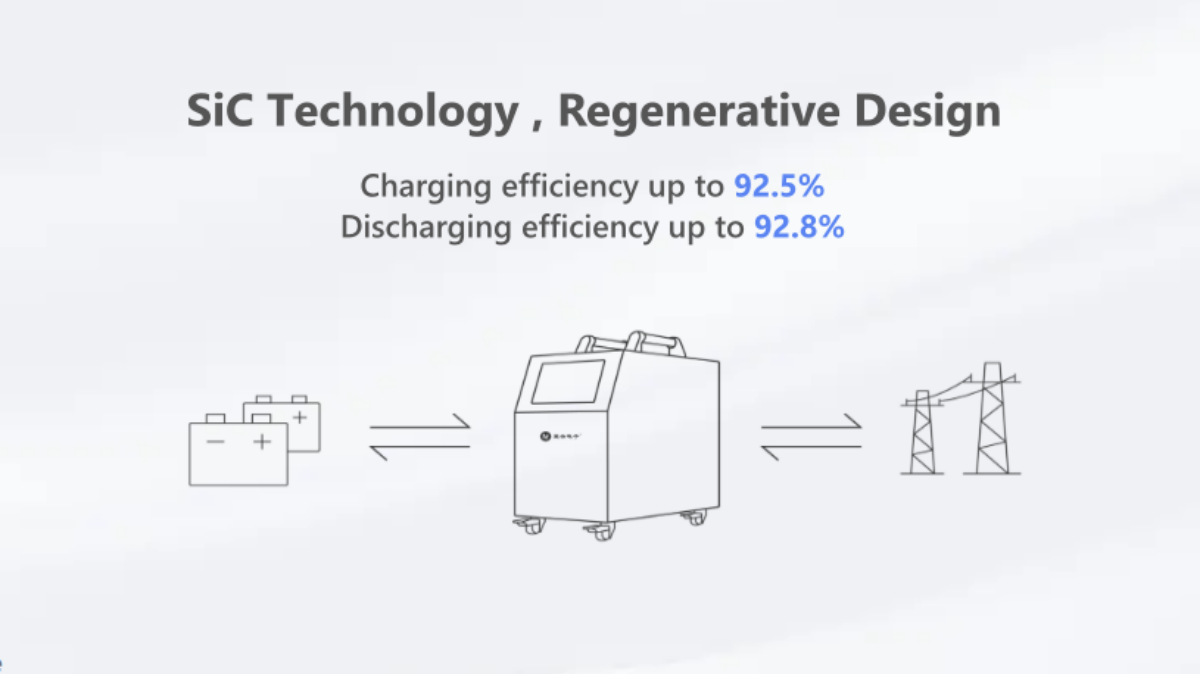

5.Energy Regenerative & High-Efficiency Design: Safe and Sustainable Operations
Engineered to provide reliable performance, operational safety, and energy-efficient operation across laboratory, manufacturing, and on-site service environments.
The Nebula Portable Battery Module Cycler achieves this through:
- Regenerative energy design: discharged energy can be fed back to the grid, reducing heat generation and improving operational safety.
- SiC-based power architecture: delivers up to 92.5% charging efficiency and 92.8% discharging efficiency, minimizing energy loss during operation.
By integrating regenerative energy management with high-efficiency SiC technology, the system not only enhances safety and sustainability but also reduces operational costs.
6.Flexible Integration into Test Ecosystems
The system is designed as a modular node within a broader test environment, supporting:
- BMS communication (CAN / CAN FD / RS485 / Ethernet/ 12V Auxiliary Power Supply)
- External device integration: Thermal chambers/Cooling systems/Data acquisition modules
By enabling seamless integration and flexible deployment, the system simplifies lab setup, accelerates testing workflows, and supports scalable testing frameworks.

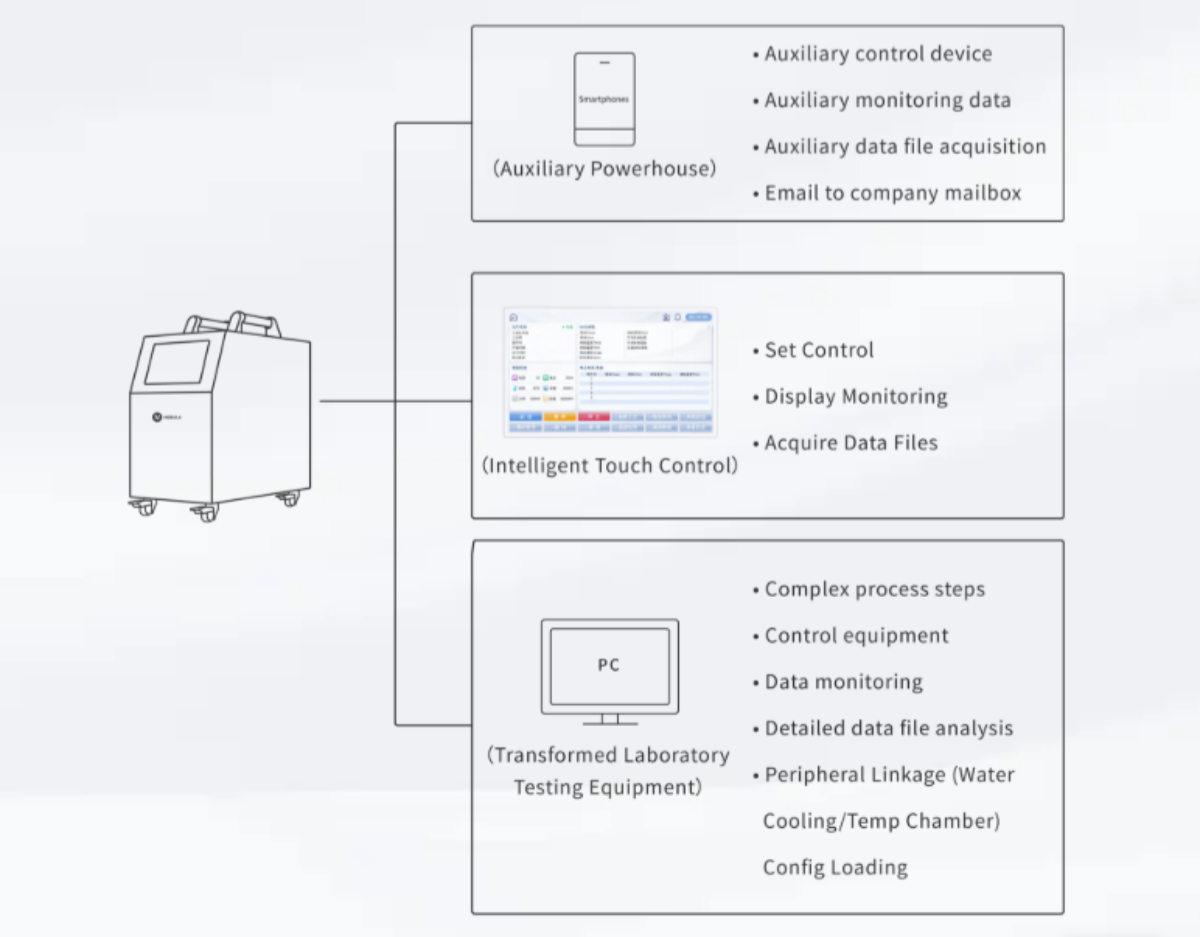

7.Flexible Integration into Test Ecosystems
The system delivers multi-terminal smart control and seamless data accessibility, transforming traditional battery testing and maintenance workflows into a mobile-first and convenient experience.
- Supports touchscreen interface, PC software for advanced test control and analysis, and mobile apps on Android, enabling intuitive control anywhere.
- Enables remote monitoring and test configuration directly via smartphone without physical interaction, making field operations simpler and faster.
- Allows direct data export via email, eliminating manual data transfer methods such as USB drives.
- Provides centralized control of multiple devices from a single mobile terminal, simplifying batch operations.
- Improves operational efficiency by enabling faster device configuration and real-time monitoring.
By combining intuitive interfaces with mobile-first and convenient workflows, the system reduces operational complexity, accelerates testing processes, and enhances user experience in both laboratory and field environments.
Nebula Vision: Driving Excellence in Battery Testing
With over 20 years of experience, Nebula delivers high-precision, portable, and comprehensive solutions for battery testing and energy storage. By integrating accuracy, mobility, and efficiency, Nebula enables energy professionals worldwide to optimize battery performance, streamline operations, and accelerate the adoption of sustainable energy, setting a new benchmark for operational excellence.
