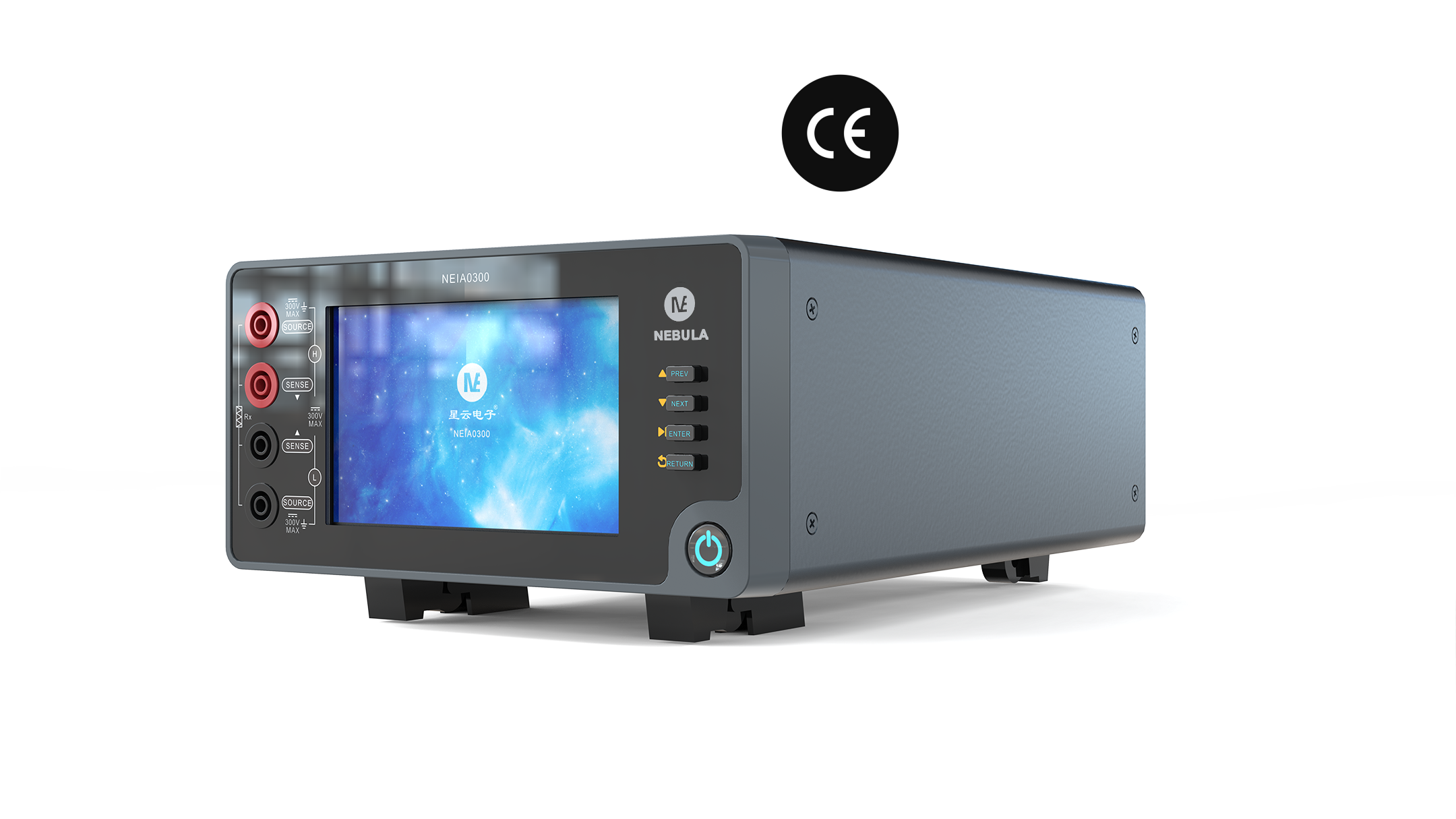

Nebula Battery Internal Resistance Tester

The Nebula Battery internal resistance tester is a high-precision, high-resolution, and high-speed instrument for measuring the internal resistance and OCV of batteries. Featuring a 5-inch color touchscreen with flexible operation and clear workflow design, it accommodates diverse user preferences. lt is suitable for product development and automated production lines, supporting high-speed synchronous testing of battery resistance and voltage. The test results can be used to assess the quality of battery capacity and technical condition, and the tester canbe used for batteries ranging from button cells to large battery packs.



Scope of Application

  • Production Line Quality Inspection
    Production Line Quality Inspection
  • Maintenance Inspection
    Maintenance Inspection
  • R&D
    R&D
  • Academic Teaching & Research
    Academic Teaching & Research
  • 产品图-通用仪器仪表-便携式锂电池均衡修复仪_副本

Product Feature

  • Full-Color Touchscreen Operation

    Full-Color Touchscreen Operation

    Meet different user habits

  • Wide Range Coverage

    Wide Range Coverage

    Minimum resolution up to 0.1μΩ, 10μV

  • Voltage Measurement Accuracy

    Voltage Measurement Accuracy

    ± (0~300V) ±0.005rdg.±3dgt.; ± (0~1000V) ±0.01%rdg.±3dgt.; ± (0~2250V) ±0.01%rdg.±3dgt/±0.05%rdg.±3dgt.

  • Resistance Measurement Accuracy

    Resistance Measurement Accuracy

    ±0.3%rdg.+30dgt./+5dgt.（16PLC）

0~2250V Full-Range Voltage Testing

Precision Measurement, Smart Control

  • Nebula Voltage & Internal Resistance Tester Series are widely used in lithium battery testing, power supply manufacturing, R&D/production/after-sales warranty of new energy vehicles, and electronic equipment maintenance. Featuring wide measurement ranges, high accuracy, and rapid sampling, they enhance testing accuracy and efficiency.
微信图片_20250626172502
0~3000Ω Full-Range Coverage

Minimum Resolution: 0.1μΩ

  • Nebula Voltage & Internal Resistance Tester Series cover testing from coin cells to large-scale battery packs, meeting measurement demands for cluster-level energy storage batteries with increasing size and voltage, while supporting diverse battery types for internal resistance/voltage testing.
微信图片_20250626174127
Fastest Sampling Time: 17ms~20ms

Enabling High-Speed Measurement

  • The Voltage & Internal Resistance Tester employs high-speed data acquisition and processing technology to complete tests rapidly, which is highly beneficial for mass production environments or scenarios requiring frequent testing, enhancing work and production efficiency.
微信图片_20250626172510
产品图-通用仪器仪表-便携式锂电池均衡修复仪_副本

Basic Parameter

  • NEA3561A-E0
  • NEA3562A-E0
  • NEA3563A-E0
  • Resistance Range0.1uΩ~3000Ω
  • Resistance Accuracy±0.3%rdg.+30dgt./+5dgt.
  • Voltage Range±(0.01mV~10V)
  • Voltage Accuracy±0.005%rdg.+3dgt.
  • Sampling Time17ms~20ms
  • Storage CapacityMore than 30,000 test results
  • Dimension201W*286D*101H(mm)
  • Weight4kg
  • Resistance Range0.1uΩ~3000Ω
  • Resistance Accuracy±0.3%rdg.+30dgt./+5dgt.
  • Voltage Range±(0.01mV~100V)
  • Voltage Accuracy±0.005%rdg.+3dgt.
  • Sampling Time17ms~20ms
  • Storage CapacityMore than 30,000 test results
  • Dimension 201W*286D*101H(mm)
  • Weight4kg
  • Resistance Range0.1uΩ~3000Ω
  • Resistance Accuracy±0.3%rdg.+30dgt./+5dgt.
  • Voltage Range±(0.01mV~300V)
  • Voltage Accuracy±0.005%rdg.+3dgt.
  • Sampling Time17ms~20ms
  • Storage CapacityMore than 30,000 test results
  • Dimension201W*286D*101H(mm)
  • Weight4kg
